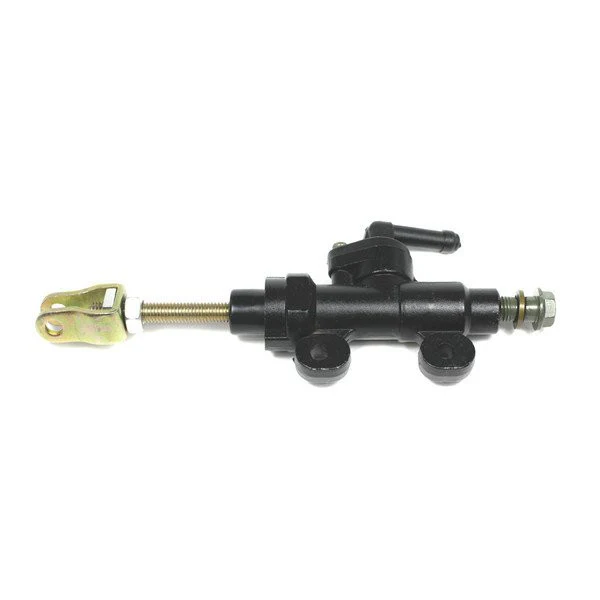

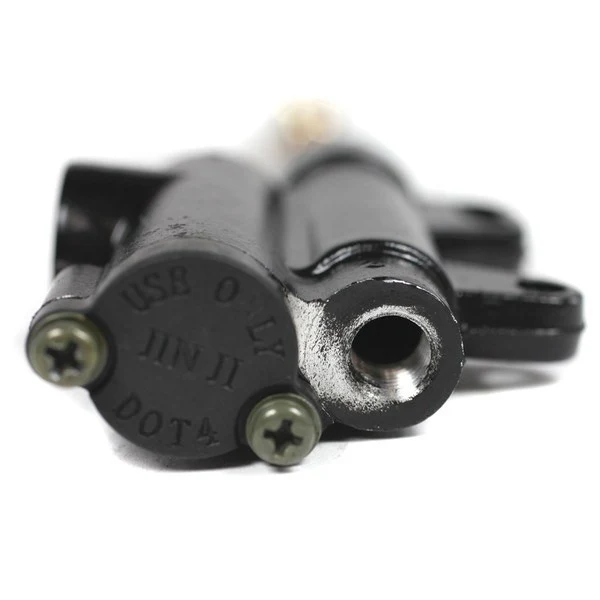

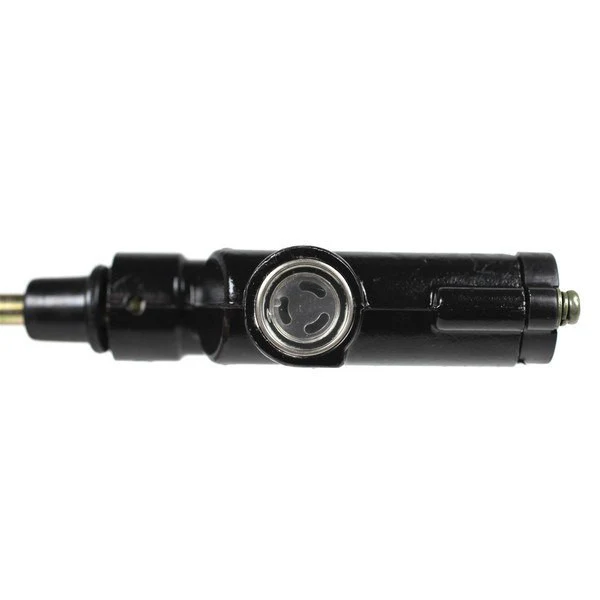

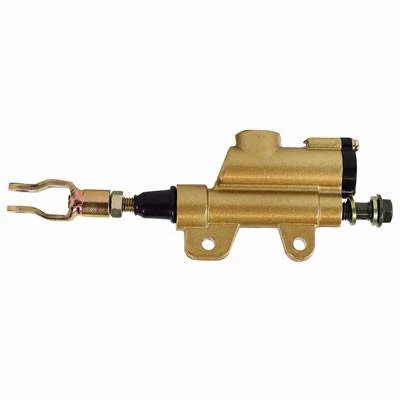

Foot Brake Master Cylinder

This rear brake master cylinder is the replacement part for many Chinese atvs. This master cylinder fits many 50cc, 70cc, 90cc, 100cc, 110cc and 125cc models.

Master Cylinder description:

• Rear
• Overall Length: 19cm (7.48 in) Adjustable
• Threaded M6x1.0 shaft measures 78mm (3.07 in) long from body.

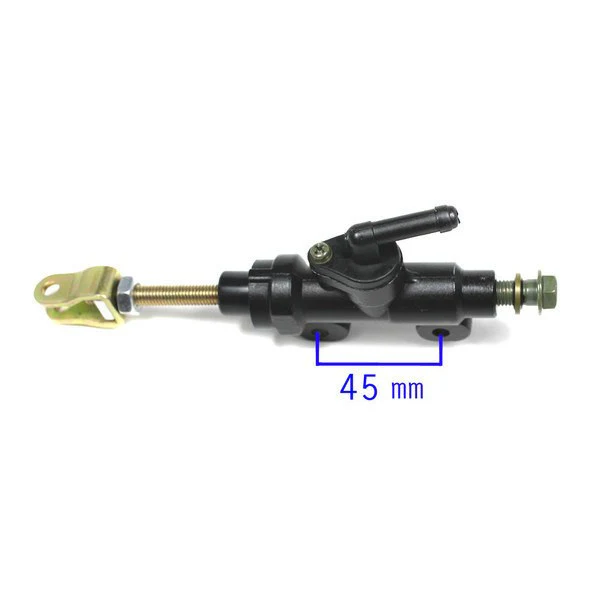

• Mounting hole measurement: 45mm (1.7 in) +/- 5mm for adjustable hole
• 10mm*1.25 banjo bolt included (uses a 12mm wrench)
• Compatible with 50cc-125cc 4 stroke
• 11921A10713

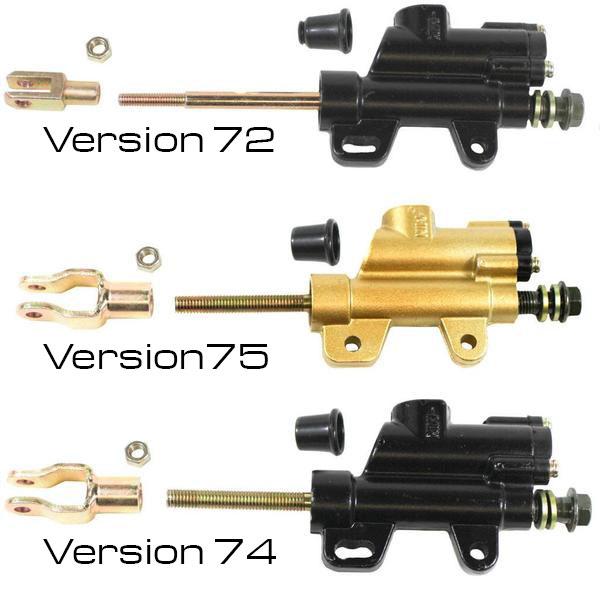

This master cylinder uses the same body as our versions 74 and 75.  Versions 74 and 75 uses an M8 threaded rod that is shorter than the M6 rod on this master cylinder.  Please look at all the pictures and descriptions to determine which master cylinder you need.

Fits the Tao Tao ATA110B, ATA110B3, ATA110D, ATA110D1, ATA110F, ATA110F1, ATA110L, ATA110L1, ATA125A, ATA125D, ATA125G, Apache 110, Boulder B1, Eagle 110, Cheetah, New Cheetah and Tonga 110 atvs.
