Chinese 12 Coil Stator Magneto for GY6 125cc-150cc Engines.

Version 41

This Chinese stator magneto is the replacement part for many 4-stroke Chinese atvs, dirt bikes, go-karts and scooters.  The stator recharges the battery while the machine is in use, like an alternator in a car.  This stator fits GY6 125cc - 150cc models.

Stator description:

• 12 coil
• DC

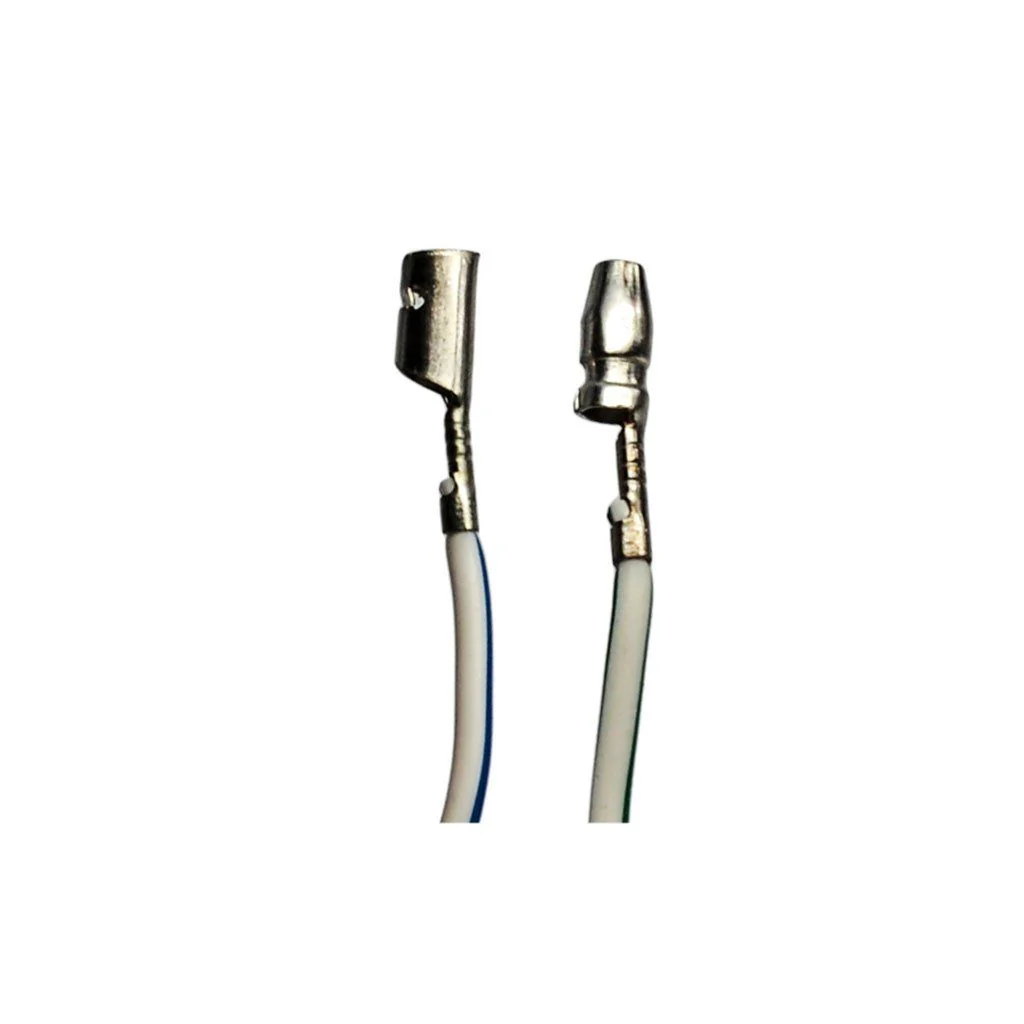

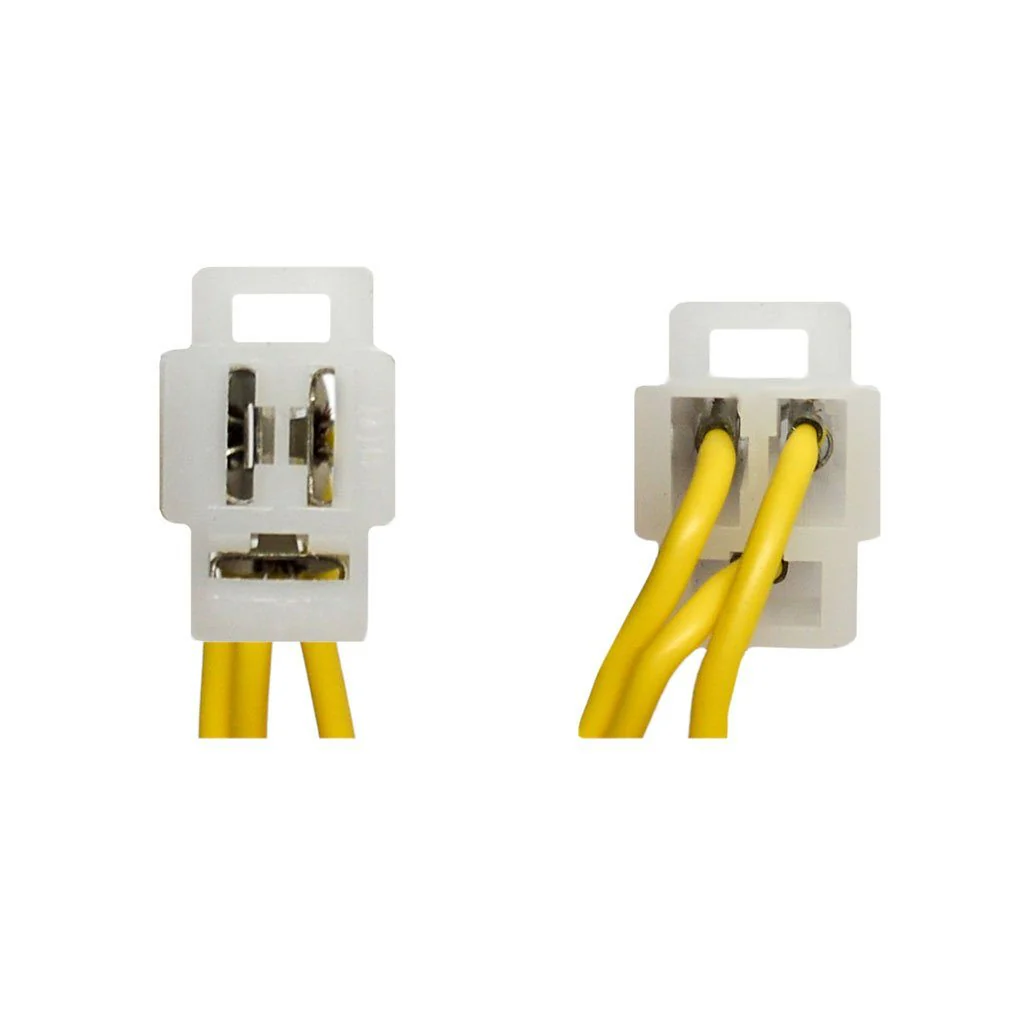

• 5 wires - 3 wire plug - 2 pigtail (+1 trigger wire)
• Wiring harness is approximately 19 inches long
• 2 bolt mounting

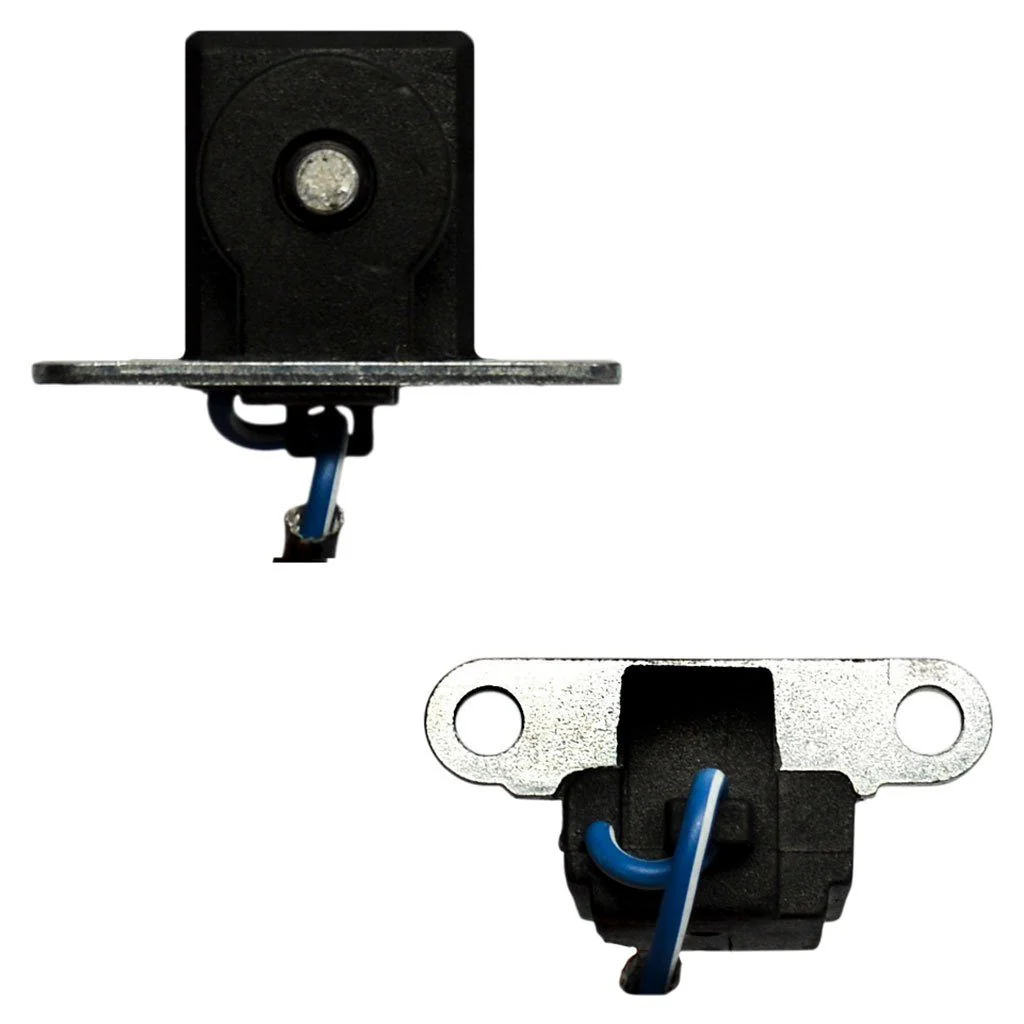

• Pick up trigger wire - single wire
• Center hole measurement: 29mm (1.14 in)

• Overall width: 88mm (3.47 in)

• Single coil height: 26.5mm (1.04 in)

• Bolt hole spacing: 41mm (1.61 in)

• Bolt hole diameter: 6mm (0.23 in)

• Compatible with 4 stroke GY6 125cc - 150cc 152QMI and 157QMJ motors

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!

Electrical parts are not returnable.  Please double check before ordering.
