Chinese 8 Coil Stator Magneto for Vertical 250cc Engines.

Version 11

This Chinese stator magneto is the replacement part for many 4-stroke Chinese  ATVs and Dirt Bikes.  The stator recharges the battery while the machine is in use, like an alternator in a car.  This stator fits 200-250cc models with vertical engines.

Stator description:

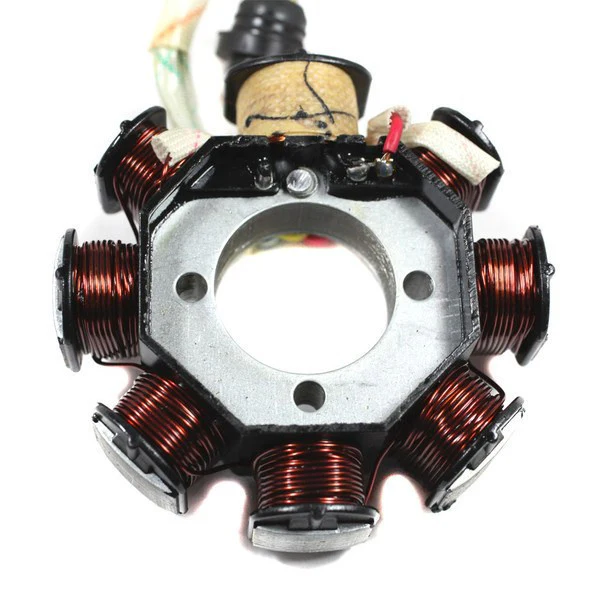

• 8 coil - 1 wrapped
• 5 wires - 45cm (17.75 in) overall length with 7.5mm wide spade connectors

• 3 bolt mounting

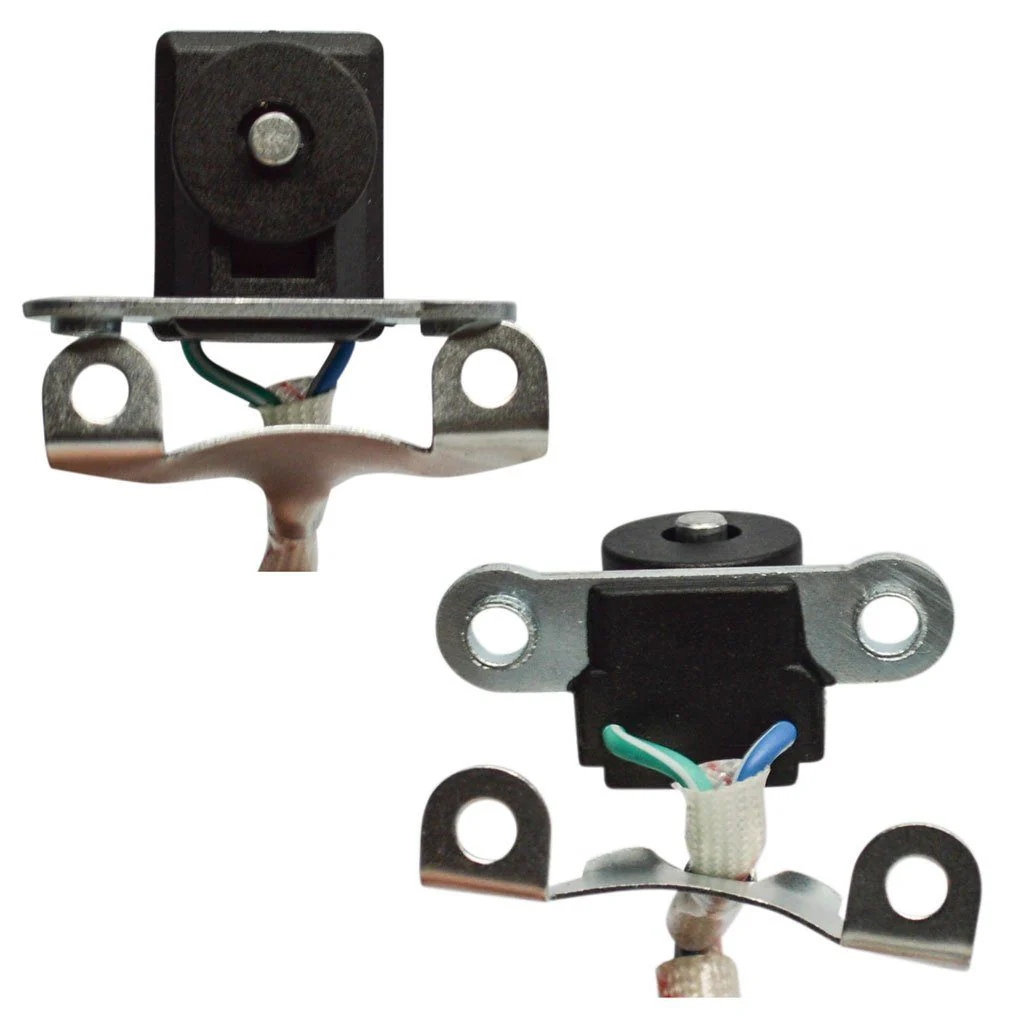

• Pick up trigger - 2 wire
• Center hole measurement: 32mm (1.26 in)

• Overall measurement:  88.6mm (3.49 in)

• Single coil height: 30mm (1.18 in)

• Wrapped coil height: 31mm (1.22 in0

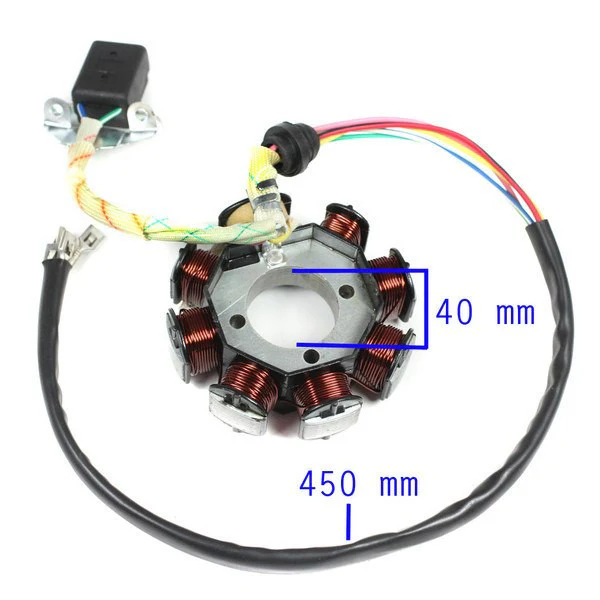

• Mounting measurement: center-to-center across 40mm (1.575 in)

• Mounting measurement: center-to-center diagonally 28.5mm (1.125 in)

• Compatible with 200-250cc vertical with manual clutch

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!

Electrical parts are not returnable.  Please double check before ordering.
