Chinese 6 Coil Stator Magneto for GY6 125cc 150cc Engines.

Version 23

This Chinese stator magneto is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters.  The stator recharges the battery while the machine is in use, like an alternator in a car.  This stator fits GY6 125cc, 150cc models.

Stator description:

• 6 coil

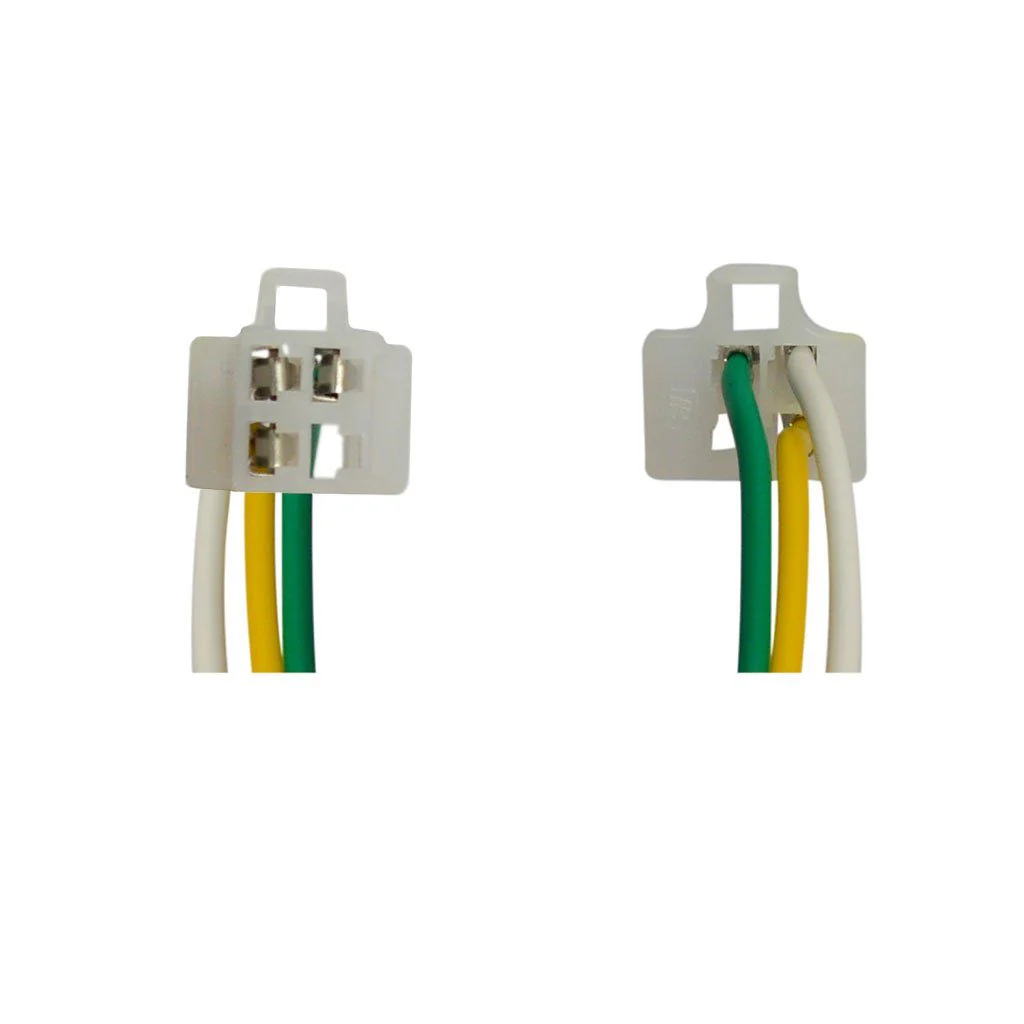

• 5 wires - 4 pin plug with 3 wires (green, white & yellow)

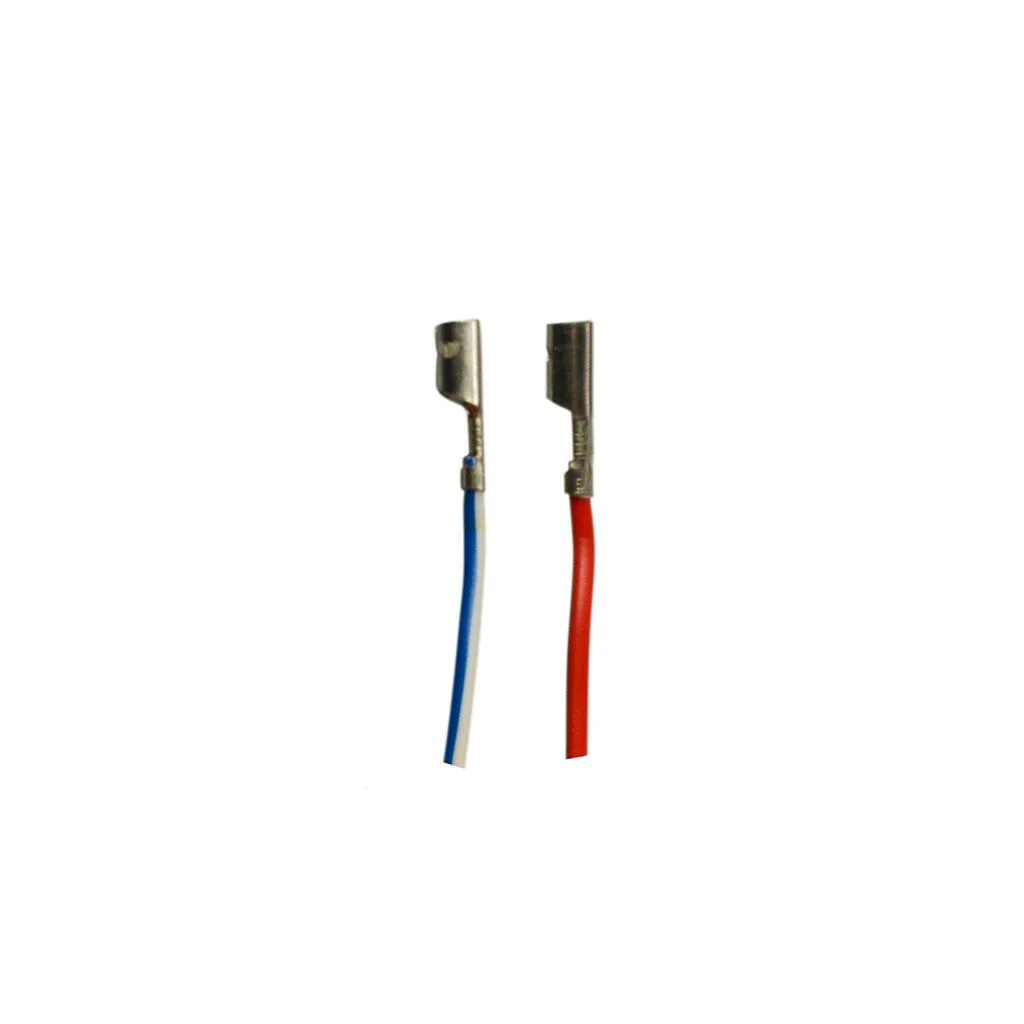

• 2 individual leads
• 21 inch overall wire length
• 2 bolt mounting

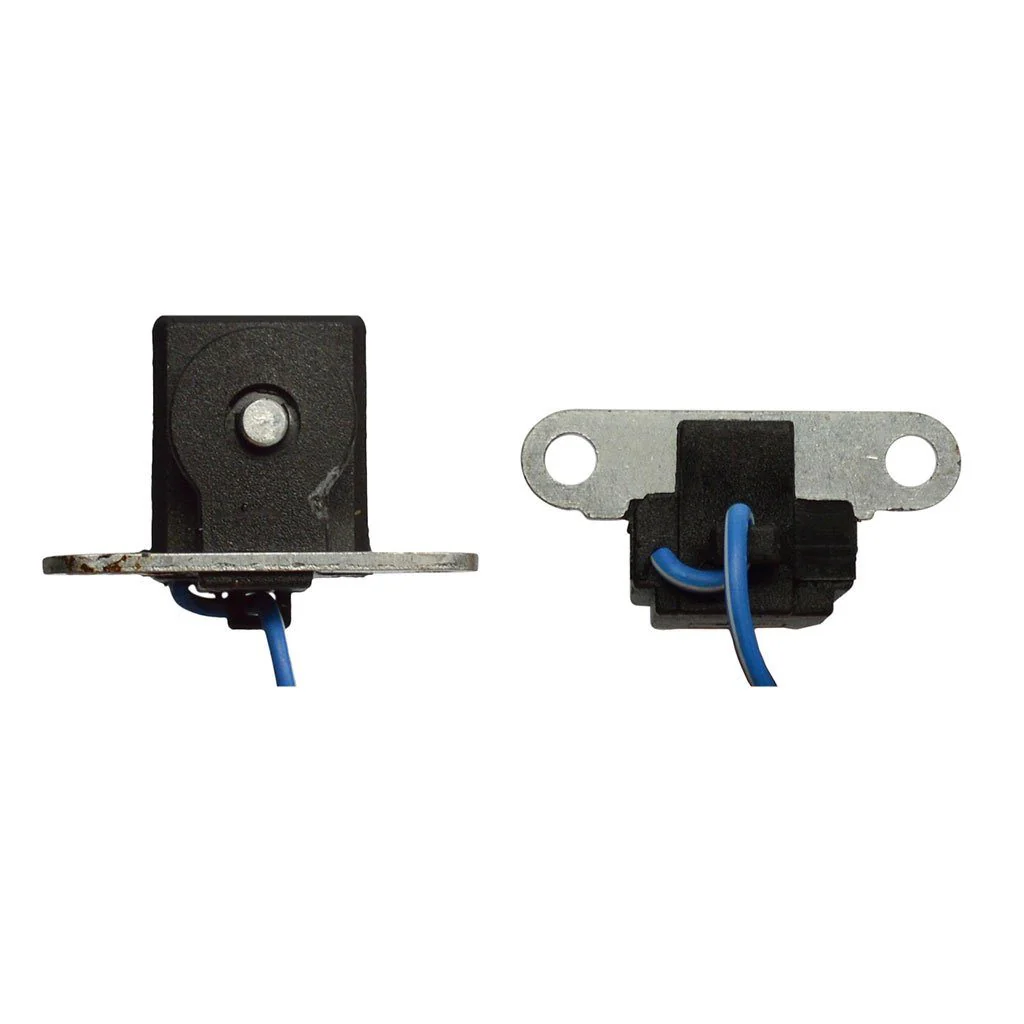

• Pick up trigger
• Center hole measurement: 29mm (1.14 in)

• Overall measurement:  83mm (2.26 in)

• Single coil height: 25.8mm (1.01 in)

• Bolt hole spacing: 41mm (1.61 in)

• Bolt hole diameter: 6mm (0.23 in)

• Compatible with GY6 125cc and 150cc 4-stroke
• BD155

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!

Electrical parts are not returnable.  Please double check before ordering.
